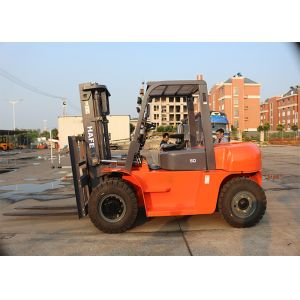

6000 kg Forklift Truck Triple Mast with Container Mast with Side Shift
Notice: The standard equipped engine for 6ton diesel forklift is Chinese Xichai engine,if you want other engine brand, such as ISUZU, CUMMINS, MITSUBISHI, please kindly contact with us, thank you.
Port of Loading: (2 hours to) Ningbo, Shanghai and Qingdao. Convenient, safe and fast Delivery!
To be fixed in container by triangle brackets withstand rough handling in the transit of forklifts.
Description:
1. Streamlined exterior, more beautiful.
2. Wide-view mast, improve the efficiency and safety of operations.
3. Man-machine engineering design, the buffer device for steering axle, the floating shock absorber configured on the engine, the adjustable steering wheel and the semi-floating bonnet built-in heat and sound insulation ensure the comfort of driving.
4. Japan origin engines meet EUIII mission control regulation and obtain EPA accreditation.
5. The wide-open integral hood enlarges the access for engine maintenance and inspection.
6. The throttling device in pipe system, preventing the mast from falling accidently.
Applications:
)many engine options:ISUZU, KUBOTA, YANMAR, NISSAN.
2)The optimized control handle brings less fatigue.and enhanced driving speed provides more efficiency.
3)Its emmision level complies with the latest CE and EPA standers.
It has an efficient and energy-saving hydraulic system which can bring lower fuel consumption.
Specifications:
| HAFE International Limited SPECIFICATIONS of 5-6Ton Forklift |
| 1 | Brand | HAFE |
| 2 | Model | Unit | FD50T | FD60T |
| 3 | Power type | | Diesel |
| 4 | Rated capacity | kg | 5000 | 6000 |
| 5 | Load center | mm | 600 |
| 6 | Operator type | | Drive in seat |
| 7 | Max. lift height of mast with Load-backrest | mm | 4380 | 4380 |
| 8 | Max.lift height of fork(standard) | mm | 3000 | 3000 |
| 9 | Height of mast (standard) | mm | 2500 | 2500 |
| 10 | Free lift height(standard) | mm | 205 | 205 |
| 11 | Height of Load-backrest | mm | 1372 | 1372 |
| 12 | Distance from seat to overhead guard | | mm | 1045 |
| 13 | overhead guard height | | mm | 2450 | 2450 |
| 14 | Length with fork | mm | 3440 | 3500 |
| 15 | Front overhang | mm | 590 | 590 |
| 16 | Rear overhang | mm | 600 | 660 |
| 17 | Wheel base | mm | 2250 | 2250 |
| 18 | The height of traction pin | mm | 395 | 395 |
| 19 | Min. ground clearance | mm | 200 | 200 |
| 20 | Overall width | mm | 1995 | 1995 |
| 21 | The distance between forks | | mm | 1840/300 | 1840/300 |
| 22 | Tread(front /rear) | | mm | 1470/1700 | 1470/1700 |
| 23 | Min. Turning radius(outside) | mm | 3250 | 3370 |
| 24 | Min. Turning radius(inside) | mm | 210 | 210 |
| 25 | Min. Intersecting aisle | | mm | 2960 | 3020 |
| 26 | Mast tilt angle | deg | 6° / 12° |
| 27 | Fork size | mm | 1220X150X55 | 1220X150X60 |
| 28 |
Speeds | Max.Drive speeds(with/without load) | km/h | 26/28 | 26/28 |
| 29 | Lifting speeds (with load) | mm/s | 510 | 510 |
| 30 | Lowering speeds(with /without full load) | mm/s | ≤600 / ≥300 | ≤600 / ≥300 |
| 31 | Max. tractive force | | KN | 65 | 65 |
| 32 | Max.grade ability (with/without full load) | % | 35/18 | 32/18 |
| 33 | Total weight | kg | 8160 | 8640 |
| 34 | Weight Distribution full load (front/ rear) | | kg | 11810/1350 | 13060/1580 |
| 35 | Weight Distribution zero load(front / rear) | | kg | 4100/4060 | 3800/4760 |
| 36 | Quantity of wheels | | | 4 X / 2 |
| 37 | Type of tyres | | | Penumatic tires |
| 38 | Tires | Front | | 8.25-15-14PR | 8.25-15-14PR |
| 39 | Rear | | 8.25-15-14PR | 8.25-15-14PR |
| 40 | Driving Brake | | | hydraumatic pedal |
| 41 | Parking Brake | | | Mechanical manual |
| 42 | Battery | V/AH | 24/2X80 |
| 43 | Engine (standard) | Model | | XICHAI CA6110 |
| 44 | Rated output | kw/rpm | 83/2000 |
| 45 | Rated torque | N.m/rpm | 450/1450 |
| 46 | No.of cylinder | | 6-100X125 |
| 47 | Displacement | L | 7.13 |
| 48 | Fuel tank capacity | L | 140 |
| 49 | Number of speeds for transmission | 2-2 Power shift transmission |
