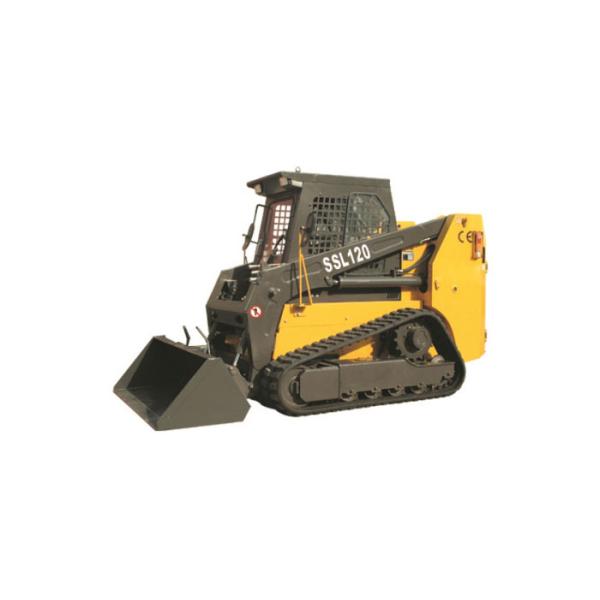

Name: Deutz D226B Engine Compact Track Loader SSL120 Capacity 1200kg Joystick Function
Brand: HAFE
Price: 1 USD

Brand Name : HAFE

Model Number : SSL120

Certification : CE

Place of Origin : CHINA

MOQ : 1unit

Price : Negotiation

Supply Ability : 3000units/year

Delivery Time : 7-15days

Packaging Details : export standard packing

Payment Terms : Western Union, T/T, D/P, L/C

Model No : SSL120

Capacity : 1200kg

Type : Compact Track Loader

Function : Joystick

Engine : Deutz D226B Engine

Engine power : 59kw

Attachement : Standard 4 in 2 bucket

Color : Yellow

Contact Now

Compact Track Loader SSL120 Capacity 1200kg Track Joystick, Deutz D226B Engine (59kw)

Description

Bucket capacity 0.55m³
Capacity1200kg
Joystick Control System
Track 320x84
Rated flux 88/122 L/min

Deutz D226B Engine ,(Parkins1104D engine are available)

Packing size:
Self weight with bucket 4280kg
L*W*H 3000mmX2300mmX2160mm

Specification


	ssl70	SSL120
Engine model	485	226B
Bore xstroke (mm)	85X95	105X130
Rated power (Kw)	30	70
Rotating speed ( rpm)	2650	2200
Number of cylinders	4	4
Max. torque (N .m)	136	380
Displace ment ( L)	2.156	4.5
Max.Speed(km/h)	8	/12/18
tire(track)model	300X52.5	320X84
Operating load (kg)	700	1200
Lifting Type	Radial Lifting	Radial Lifting
Bucket capacity (m³)	0.3	0.55
Rated flux (L/min)	40	88
)High Flow Flux (L/min)		122
Fuel tank capacity (L)	50	90
self weight bucket (kg)	2800	4280
Overall operating height (mm)	3350	4070
Height to bucket hinge pin (mm)	2770	3150
height to top of cab (mm)	2050	2160
	2603	2983
Height to bottom of level bucket(mm)	2603	2983
Overall length ithout bucket(mm)	2300	3000
overall length with bucket(mm)	2950	3700
Dumping angle at maximum height(°)	40	40
Dumping height(mm)	2100	2450
Dumping reach(mm)	790	700
Rollback o bucket on ground(°)	30	30
Rollback of bucket at full height(°)	104	104
Wheelbase(mm)	1240	1500
Ground clearance(mm)	140	200
Angleof departure(°)	20	20
Front turning radins without bucket(mm)	1064	1365
Front tuning radius(mm)	1825	2200
Rear tuning radius(mm)	1264	1742
Rear axle to bumper (mm)	594	938
Tread width,enterline to centerline (mm)	1102	1654
Width (mm)	1402	1994
Bucket width (mm)	1500	230
